Flexo Printing and Die Cutting: What to Specify

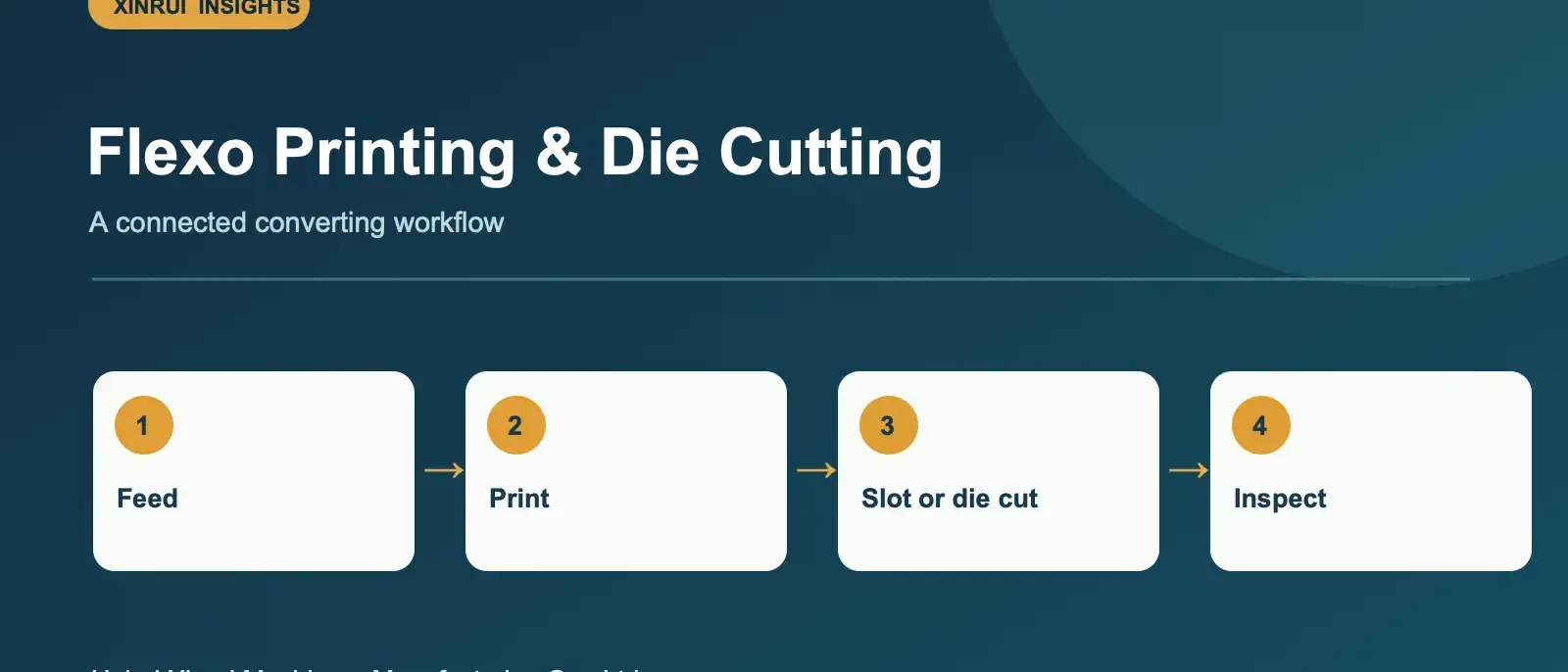

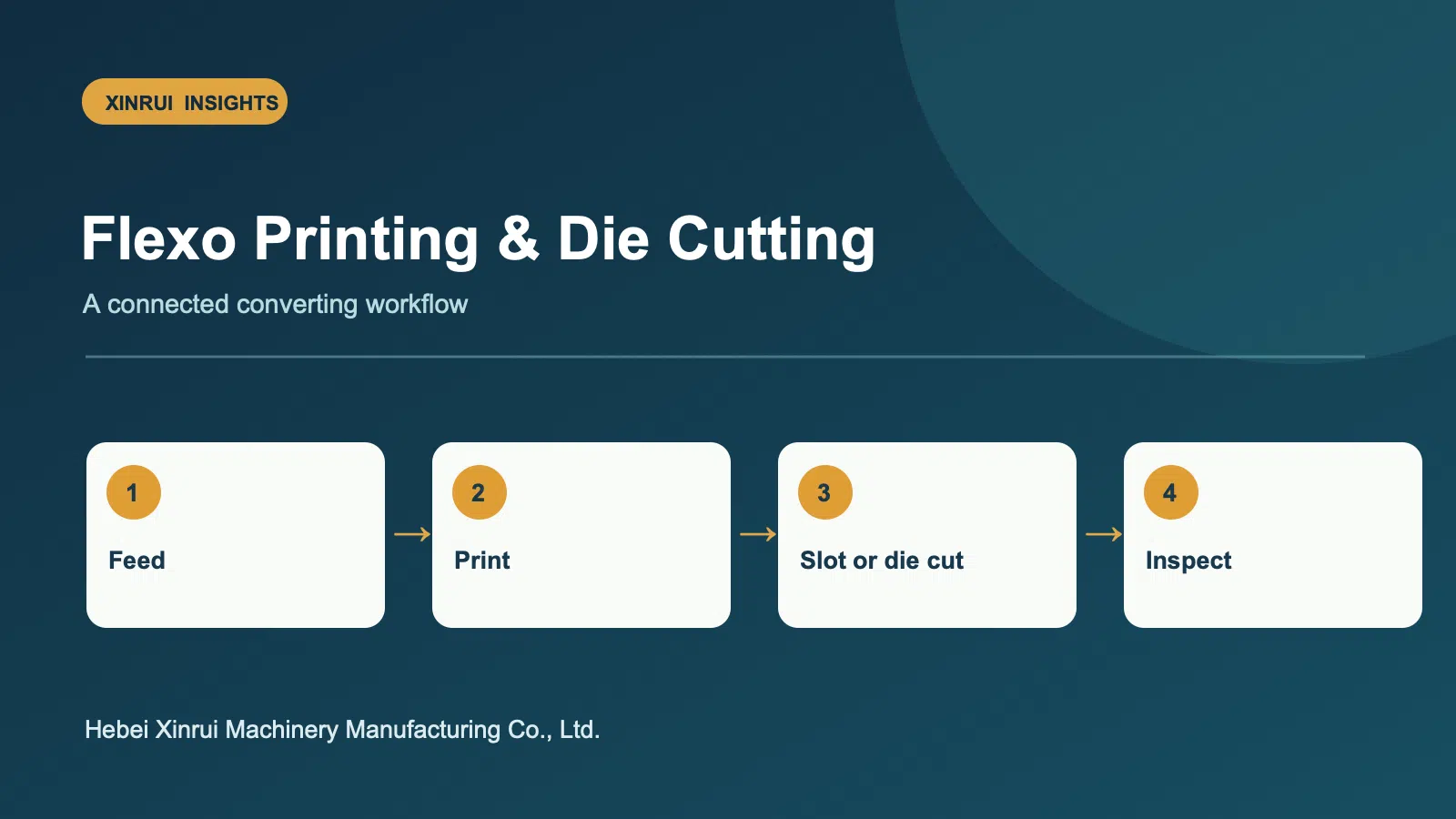

A flexo printing and die-cutting line turns corrugated sheets into printed box blanks. The right configuration follows the artwork, board size and required box geometry. Before requesting a quote, collect representative jobs rather than sending only a machine speed target.

Define the printed job

Share print dimensions, number of colors, coverage, registration expectations and sample artwork. A two-color shipping carton and a four-color display box may put different demands on setup and print quality. Ask which print units and handling features are included in the quoted configuration.

Define the cutting job

List the box styles, blank dimensions, slots and die-cut shapes you expect. Include the board flute and thickness range. For repeated designs, explain the likely batch sizes and how often jobs change. These details help determine tooling, feeding and delivery arrangements.

Compare specifications carefully

The XR-FDC-1600 flexo printing and die-cutting machine lists 1600 mm working width, 2–4 colors and 120 sheets/min design speed. Confirm the selected print-unit count, tooling scope and board compatibility in the actual proposal. A design-speed value should be evaluated against the real sheet size and print coverage of your jobs.

Plan quality checks

Agree on print registration, color consistency, slot and die-cut position, and blank damage checks. Send physical samples when possible and ask how the acceptance run will be evaluated. This prevents an equipment comparison from relying on different assumptions about the finished box.

For a quotation: Attach three typical jobs with board specification, artwork, blank dimensions, quantities and desired output. Contact [email protected].
